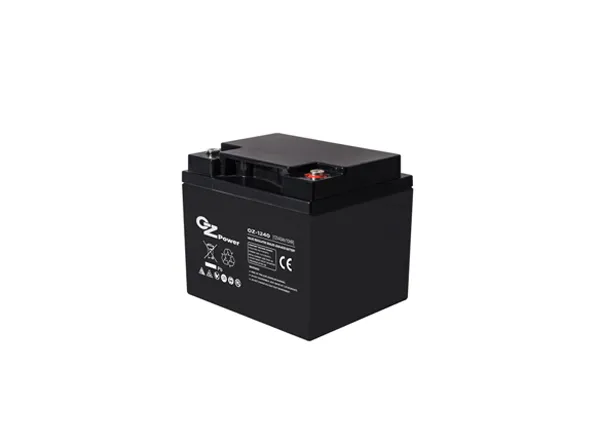

12V | 40Ah Battery

12V | 40Ah Battery

OZ 12V | 40Ah series is a high-rate general purpose battery with 12 years design life in float service.
It meets with IEC, JIS, BS, GB/T and YD/T standards. With advanced AGM valve regulated technology and high purity raw material, the OZ series battery maintains high consistency for better performance and reliable standby service life. It is suitable for UPS/EPS, medical equipment, emergency light and security system applications.

The OZ 12V range is commonly used in many applications, especially the emergency power supply of uninterruptible UPS systems. The battery is designed and manufactured to ensure the highest levels of performance in rapid discharges, while maintaining maximum reliability and durability over time.

Based on proven AGM VRLA technology, the OZ battery is 99% recyclable at end of life. OZ 12V does not require any maintenance. In addition, the series is classified as non-dangerous goods and can be safely transported by truck, rail and air. The specific design has been optimized to reduce self-discharge during storage.

Description

OZ-VRLA 12V 40Ah
Cells per unit 6
Nominal tension 12
Nominal capacity 40 Ah@20Hour rate F.V (1.75/cell)
Weight Approx. 12.60 Kg
Internal Resistance <10Ω
Terminal IT (M)
Max. Discharge Current 380A (5s)
Design life 10-12 years
Max. Charging Current 12 A
Standby Use Voltage 13.5-13.8V
Cycle Use Voltage 14.4-15V
Operating Temperature range Discharge: -15° C ~ 50°C
Charge: 0° C ~ 40°C
Storage: -15° C ~ 40°C
Container Material ABS, UL94-HB & 94V-0
DIMENSIONS
Lenght 197 ± 3 mm
Width 166 ± 1 mm
Height 170 ± 1 mm
Total height 170 ± 1 mm

Catalog

Technical specifications battery 12V | 40 Ah
